How to Integrate a P1 Master Terminal With a P17 PIN pad Terminal

The P17 PIN pad requires an external power supply to operate, which can be provided by the master terminal (P1). Follow the steps below to connect and power the terminals.

Feature Compatibility

• Minimum required POS build with (HUB) - 10134 and above.

• Supported Processors: Supported by all processors

• Supported Fee Types: Not Applicable

• Supported Terminals: See the P17 PIN pad configurations below

P17 PIN pad – Supported Configurations

The P17 PIN pad is a versatile payment device designed to support various integration modes depending on the merchant’s setup. Below are the supported configurations:

1. Standalone Mode

• Operates independently without needing to be paired with another terminal or system.

• Suitable for quick-service or mobile setups where the PIN pad handles transactions directly.

2. CloudPOS Integration

• Functions as a customer-facing PIN pad during CloudPOS transactions.

• Allows customers to securely view totals, enter tips, and complete payments via card or tap.

3. SPIn Integration with a Supported Cash Register

• Integrates with certified cash register software via SPIn (Secure Payment Interface).

• The PIN pad is triggered directly by the register, enabling seamless point-of-sale coordination and payment processing.

4. Paired with a P1 Master Terminal (USB)

• Connected to a P1 terminal via USB cable.

• The P1 acts as the master device, providing power and communication.

• This configuration is exclusive to the P1 model due to hardware compatibility.

5. Paired Wirelessly with Any iPOSpays-Compatible Terminal

• Communicates over a shared Wi-Fi network.

• Suitable for merchants who prefer a cable-free setup.

• Can be paired with a wide range of iPOSpays-supported smart terminals beyond the P1.

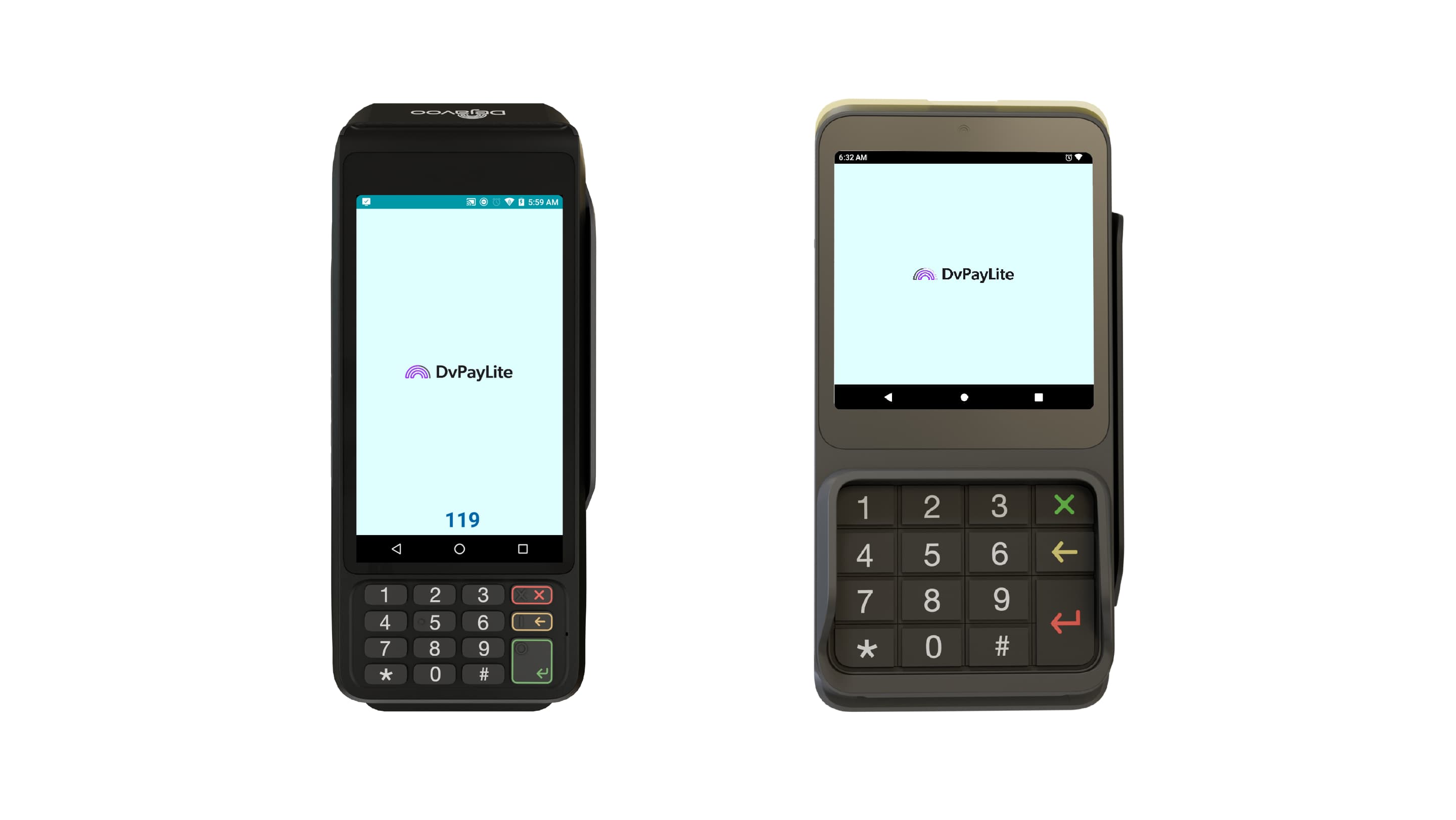

Plugging in the Terminals

Step 1: Plug the P1 charger into a wall socket.

This will charge the P1 terminal while also allowing it to act as a power supply to the P17 terminal.

Step 2: Connecting the P17 PIN pad

• The P17 terminal will automatically power on when plugged in.

How to Enable PIN pad Mode From the Portal

To enable and integrate a PIN pad terminal (P17) with the master payment terminal (P1), the ISO must activate PIN pad mode for the TPN assigned to the master terminal. This configuration is done through the iPOSpays portal. Follow the steps below to complete the setup.

Step 1: Log in to the Portal

1. Go to portal.ipospays.com.
2. Log in using your ISO/Agent Office user credentials.

Step 2: Locate the Master Payment Terminal

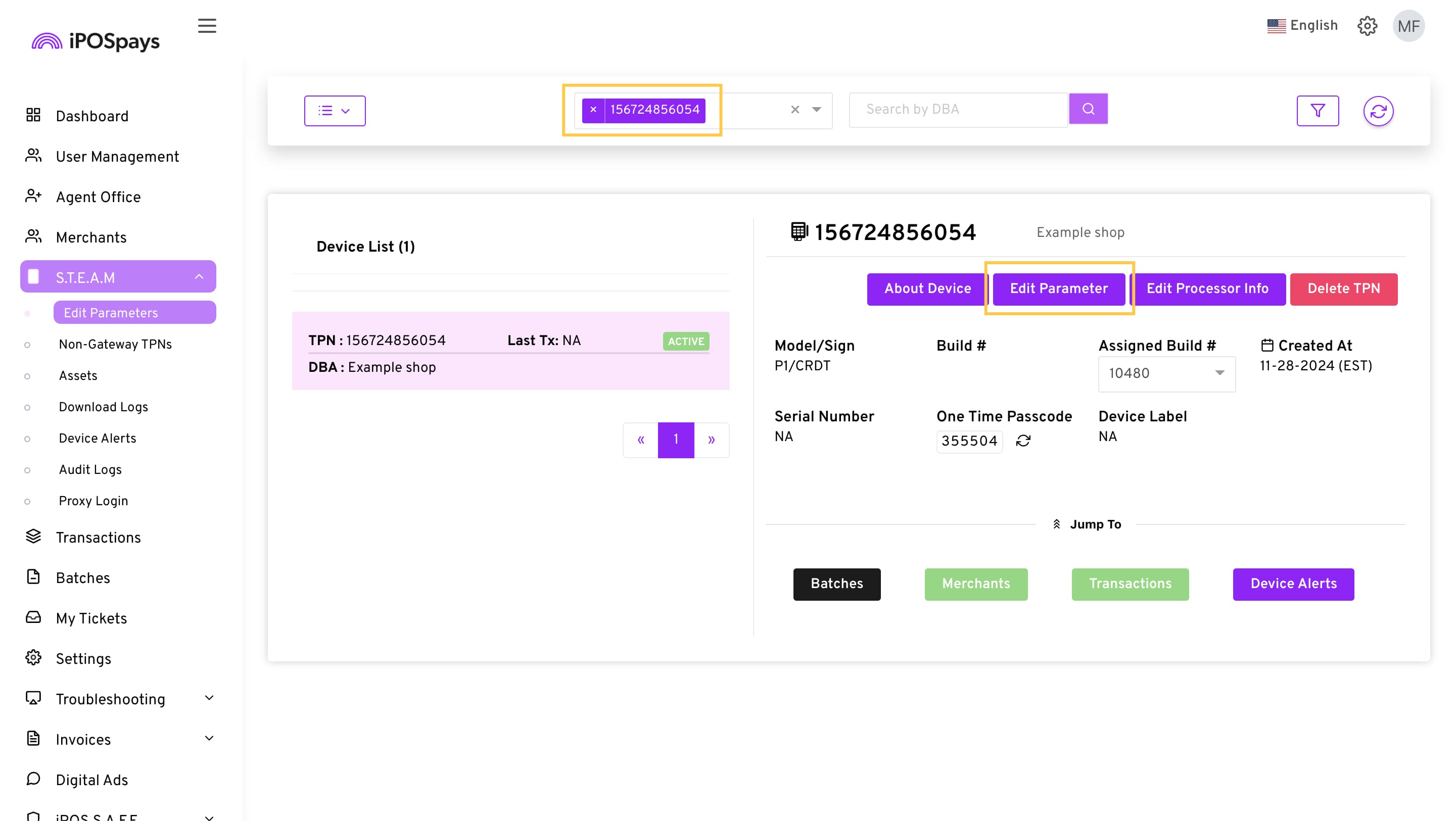

1. From the side menu, click on S.T.E.A.M > Edit Parameters.

2. Use the search box to find and select the TPN (Terminal Profile Number) of the master payment terminal.

Step 3: Enable PIN Pad Mode

1. Click on Edit Parameter.

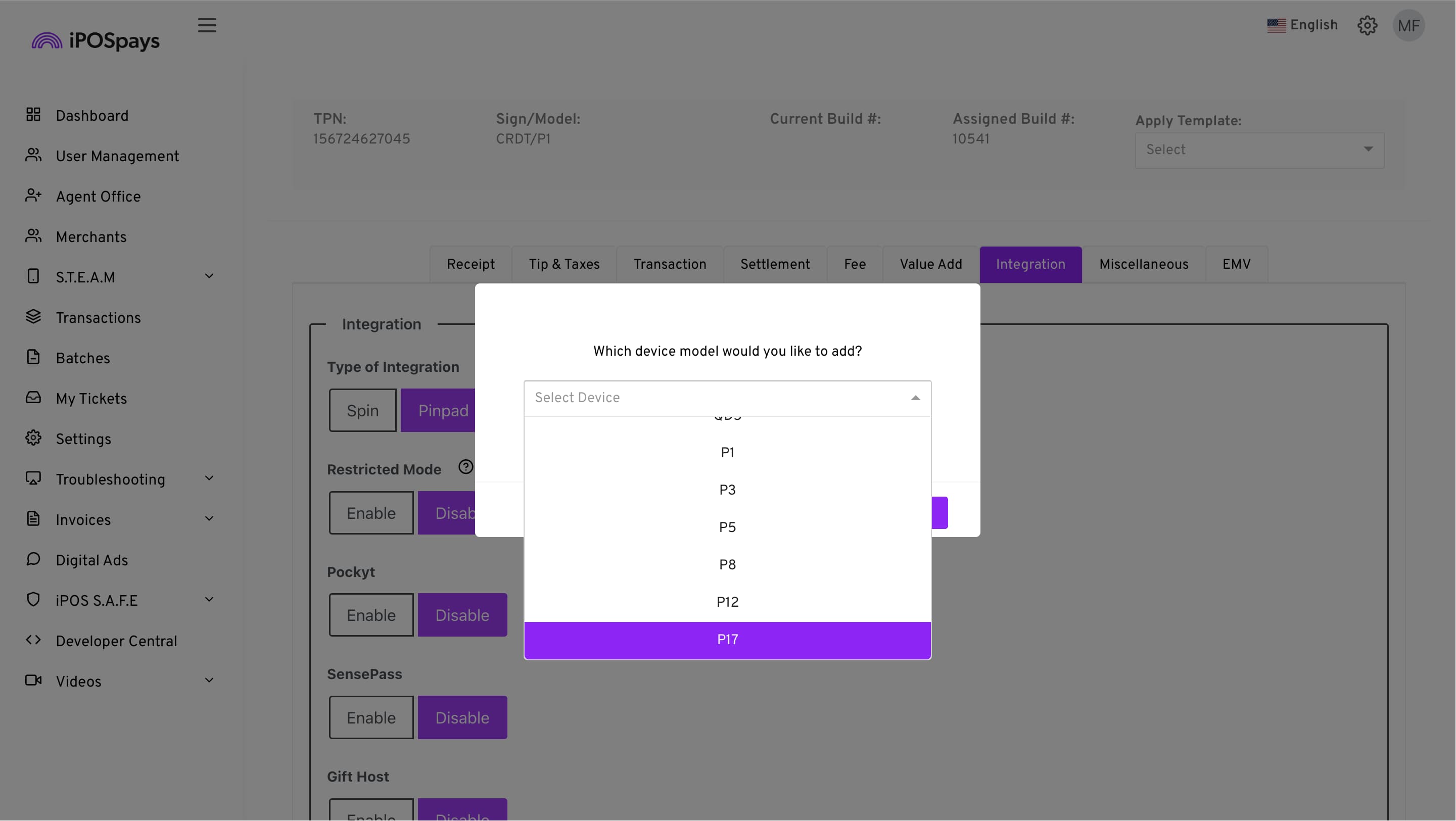

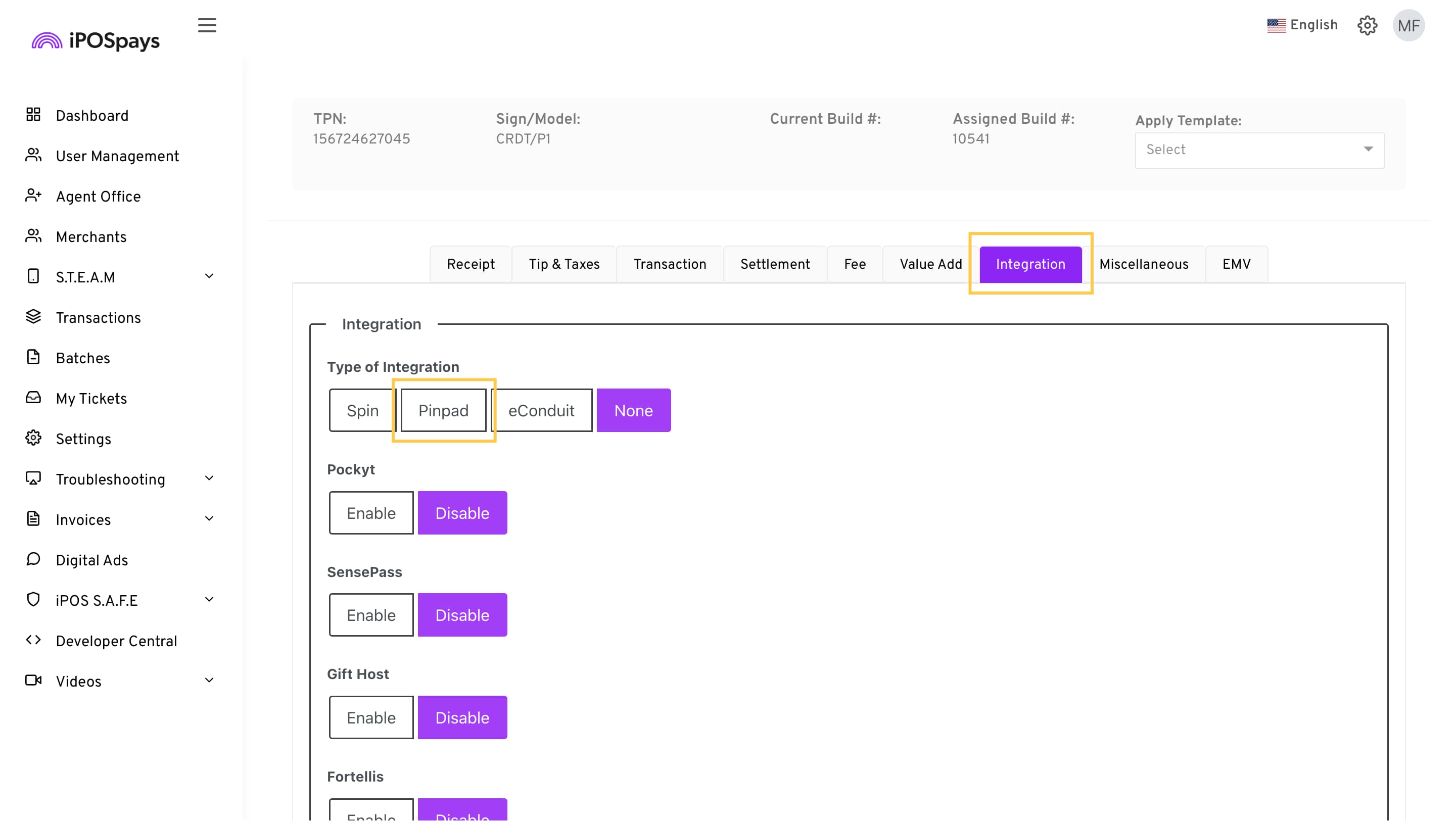

2. Go to the Integration tab and select PIN pad Mode from the Type of Integration options.

3. When PIN pad Mode is selected or enabled from the “Type of Integration” options, a dropdown menu will automatically appear. From this menu, select the desired PINpad device to pair with—choose P17.

Step 4: Save Changes

1. Scroll down and click Save to apply the changes.

Pairing the two Terminals

Pairing Methods

There are two methods to pair the terminals, depending on your preference:

• Through a USB Cable: Transaction data is transmitted directly between the terminals via the USB cable.

• Through Wi-Fi: Transaction data is exchanged wirelessly between the terminals over a shared Wi-Fi network.

How to Pair Through USB

• Connect P1 to Network

Connect the P1 master terminal to a network to perform a parameter update for a TPN that has PINpad mode enabled.

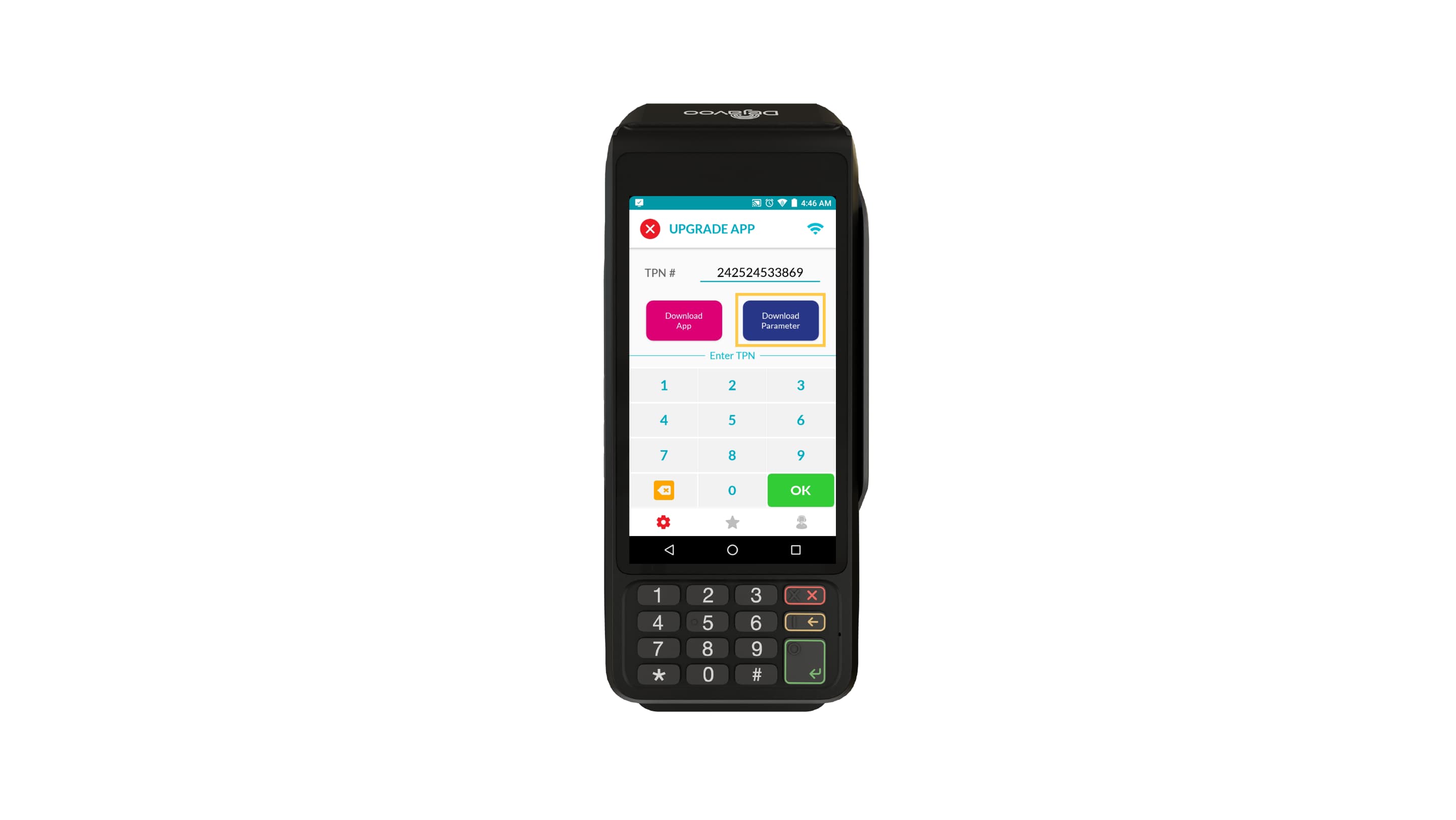

• Download TPN on P1

  • Once the TPN has been downloaded to the P1 terminal, a prompt will appear asking if you wish to continue as a PINpad.

• Select Pair Now. This will take you to the PINpad section in the Settings menu.

• Prepare P17 for Pairing

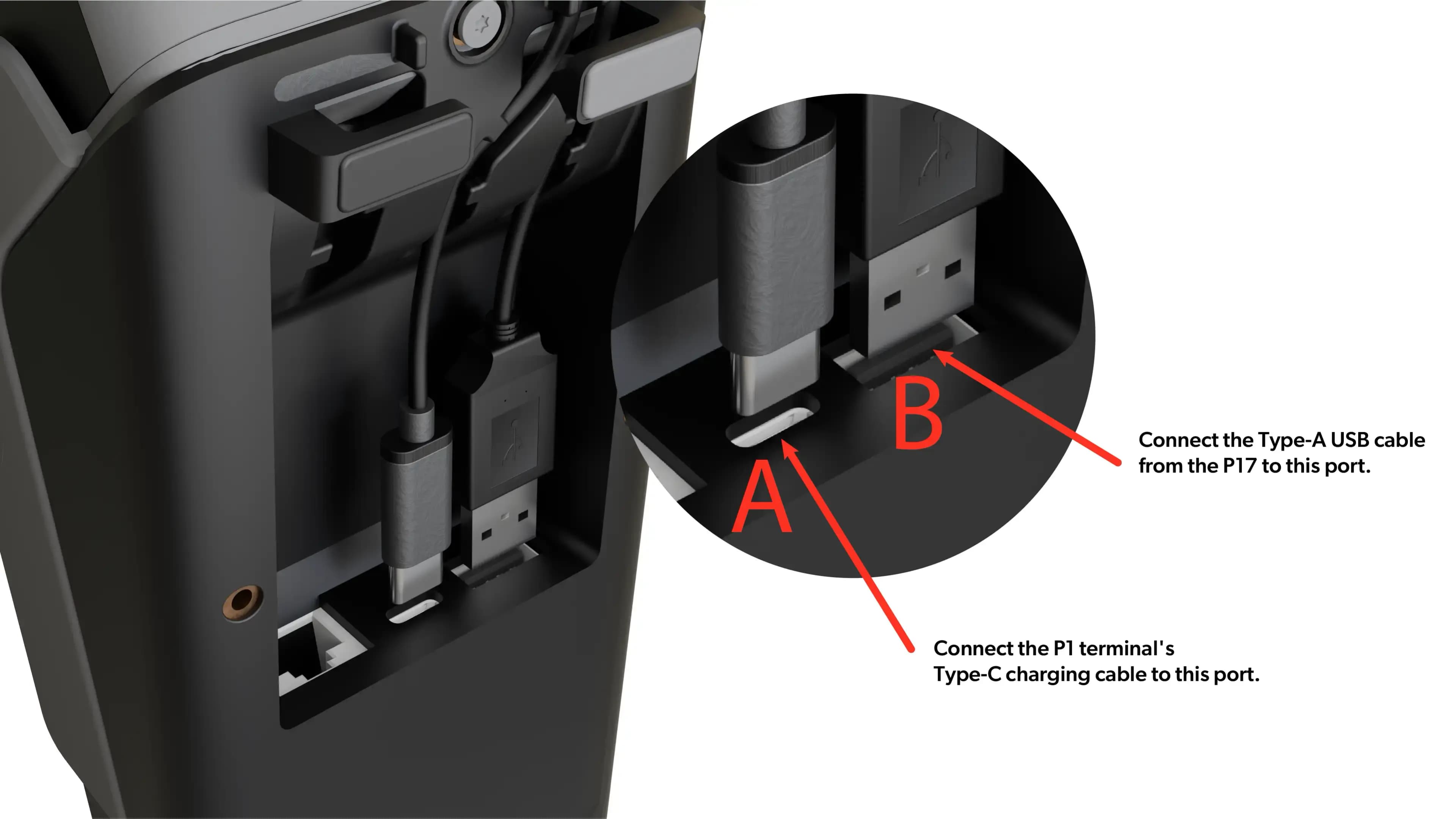

  • Connect the P17 device to the P1 terminal.
  • The P17 will load and open the DvPayLite app and display the “Enter TPN” screen.

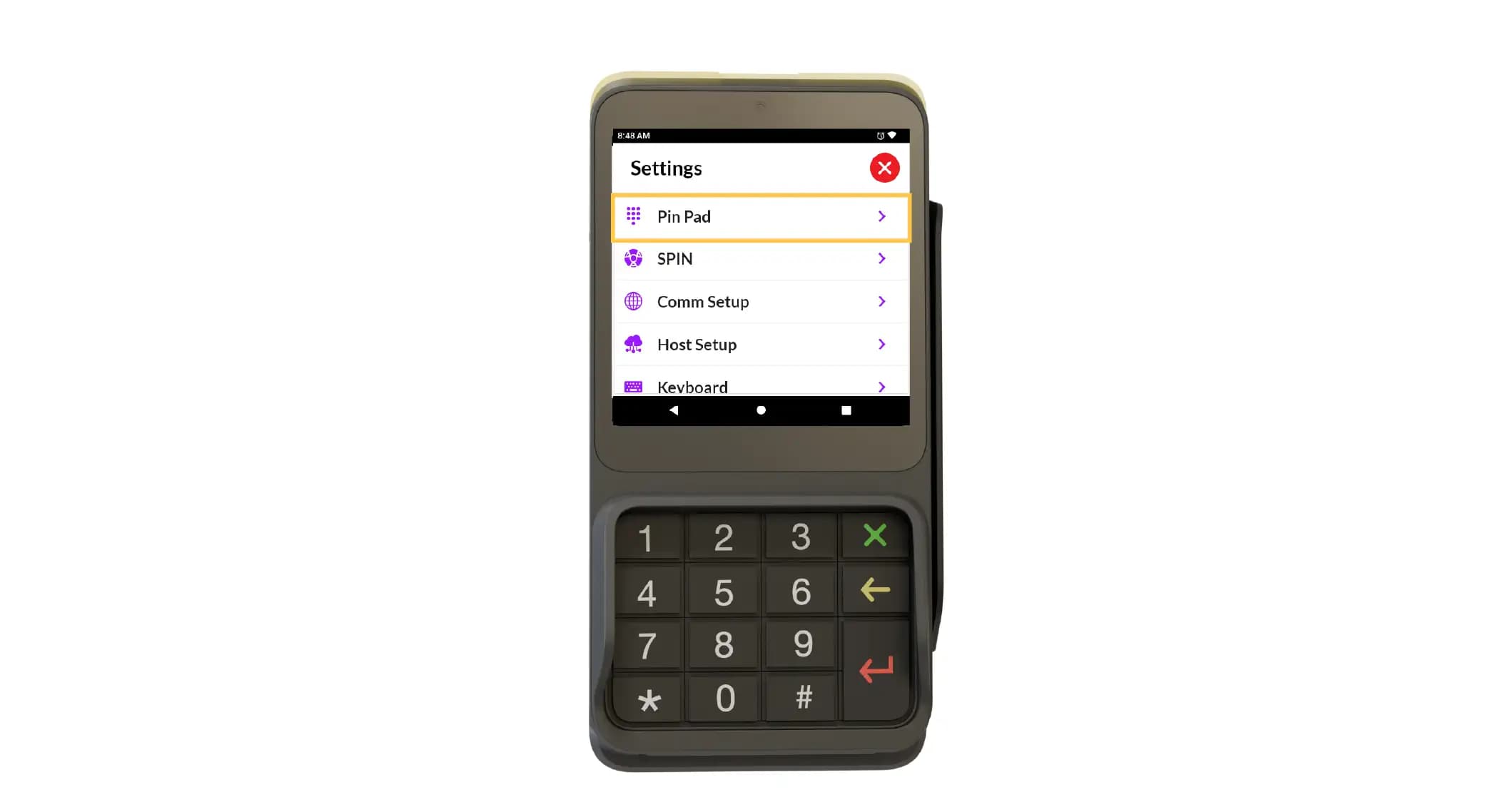

  • From the Enter TPN screen, tap the Settings icon.

• Select Pin Pad.

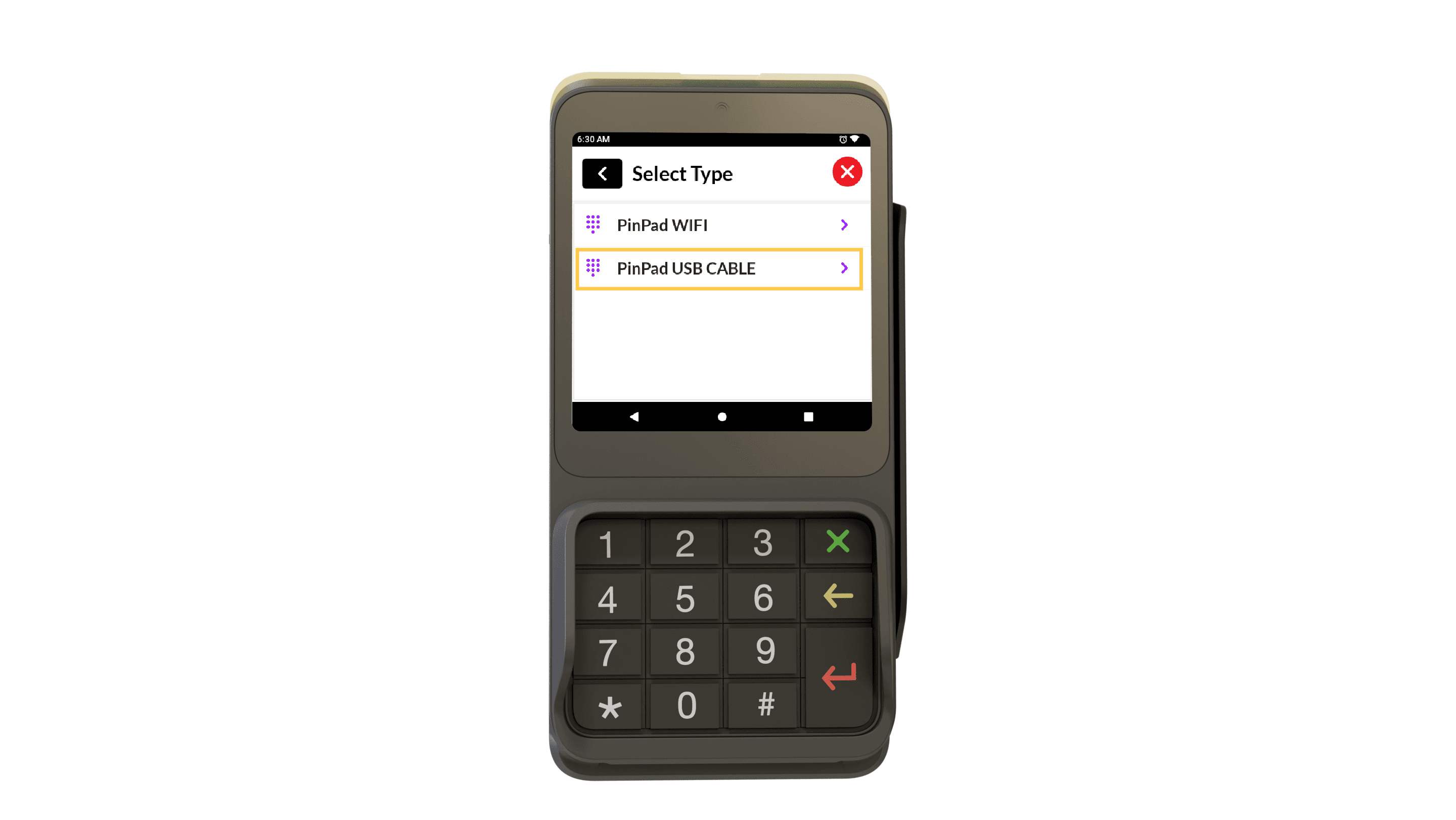

• Choose the pairing option PinPad USB CABLE.

• Select USB Cable Pairing

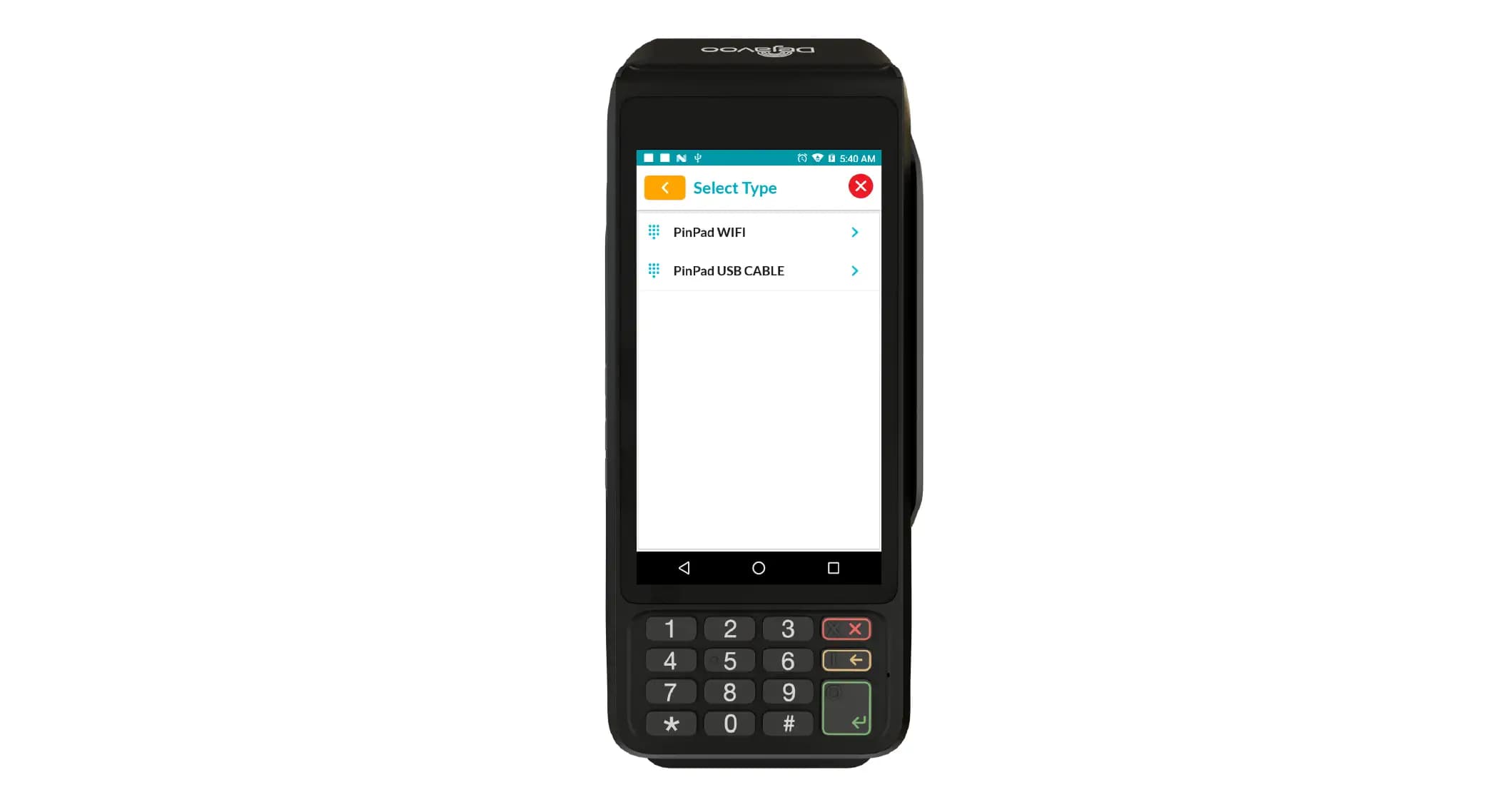

  • On both the P1 and P17 terminals, select PinPad USB CABLE as the pairing option.

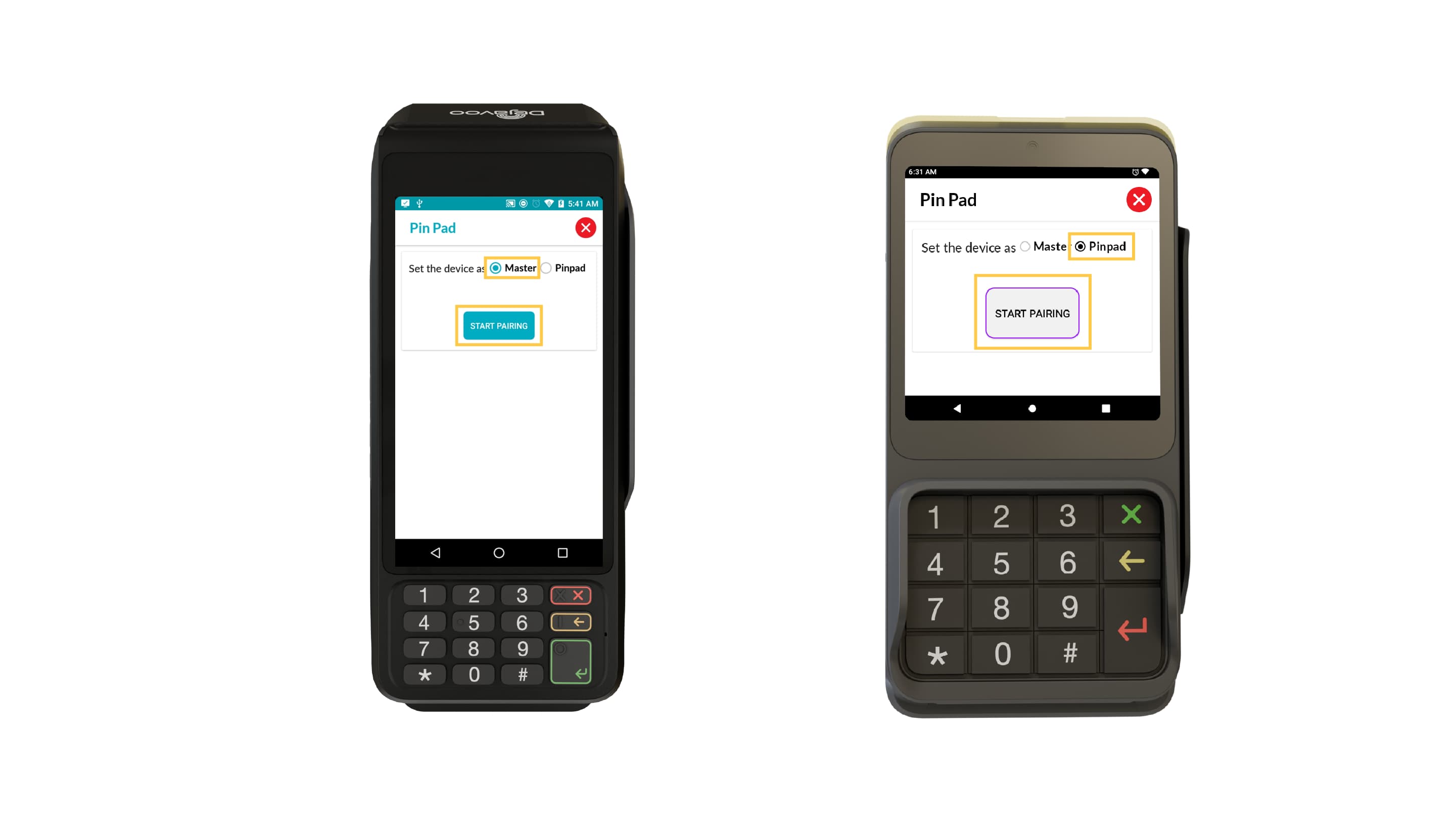

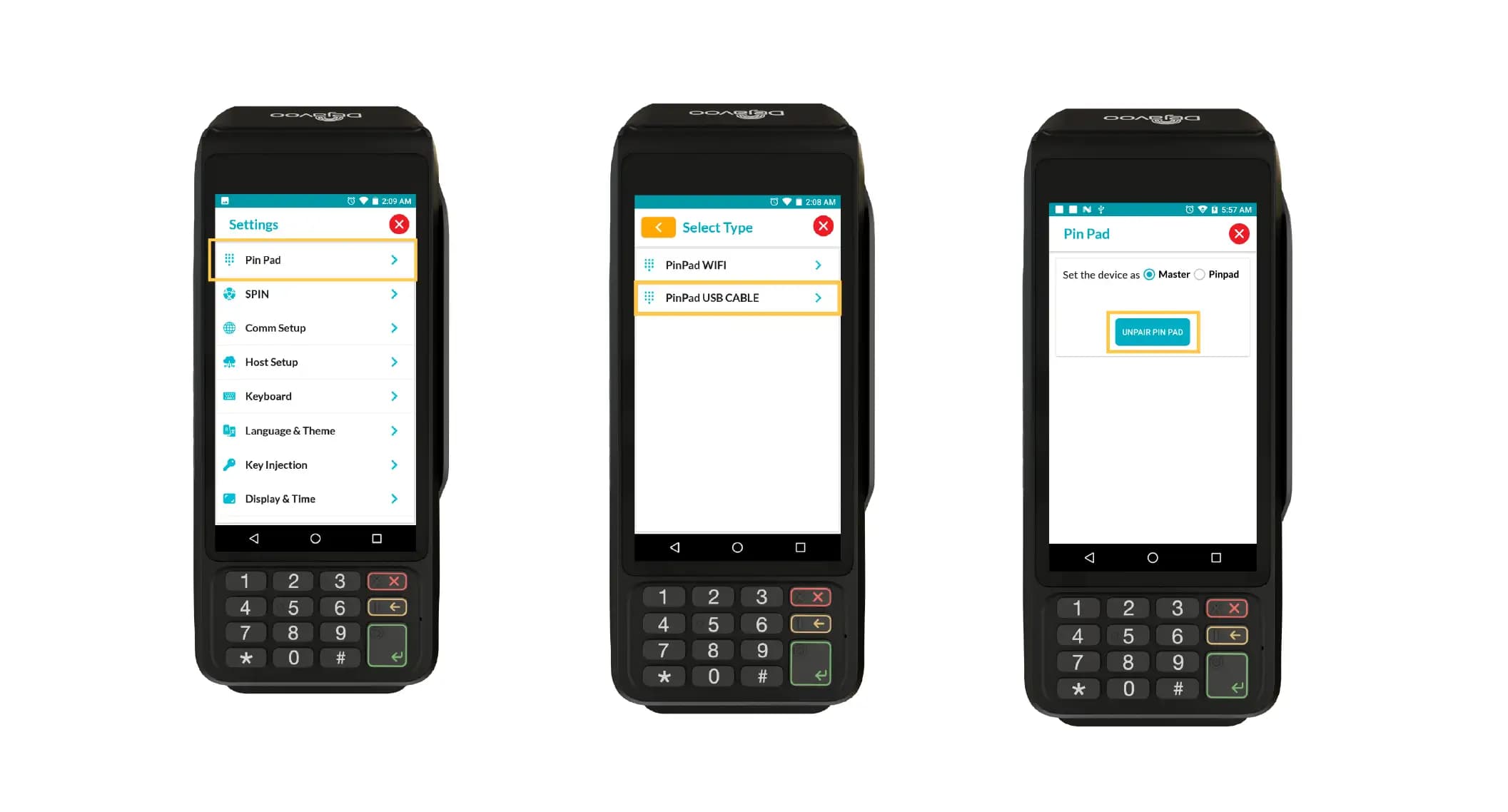

  • Set the device to Master on the P1 terminal and PINpad on the P17 as shown in the images below.

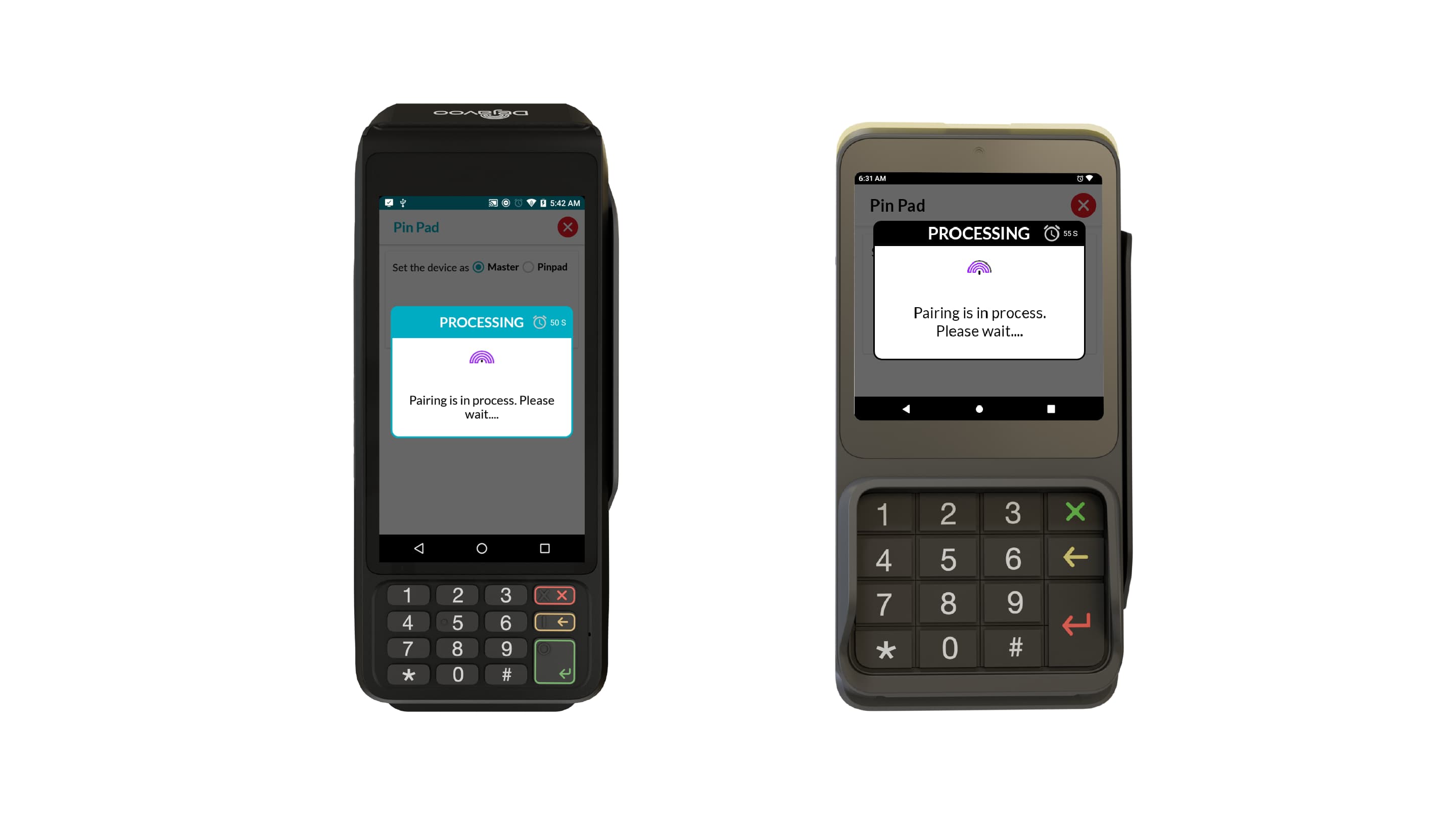

• Click START PAIRING on both terminals.

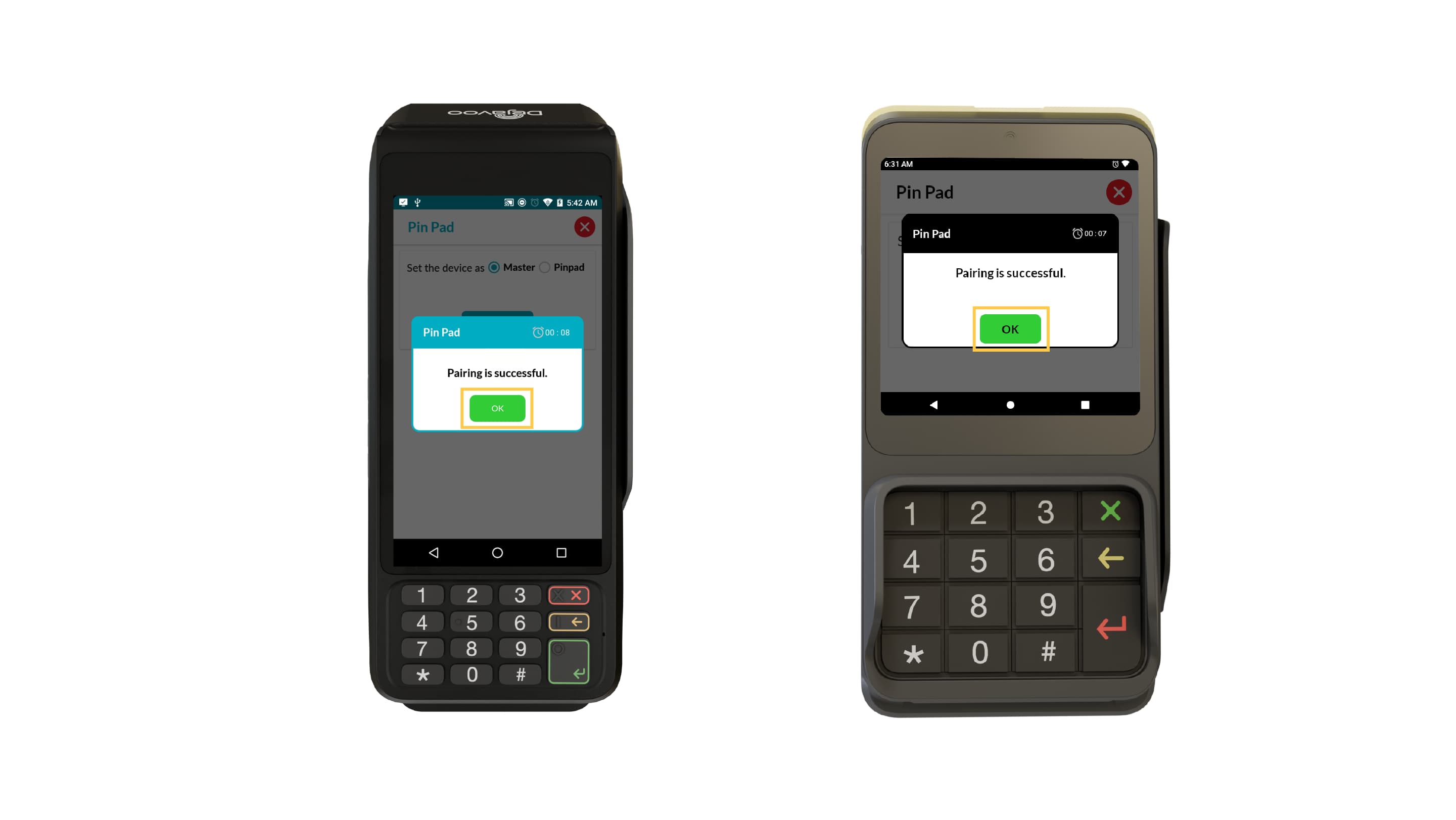

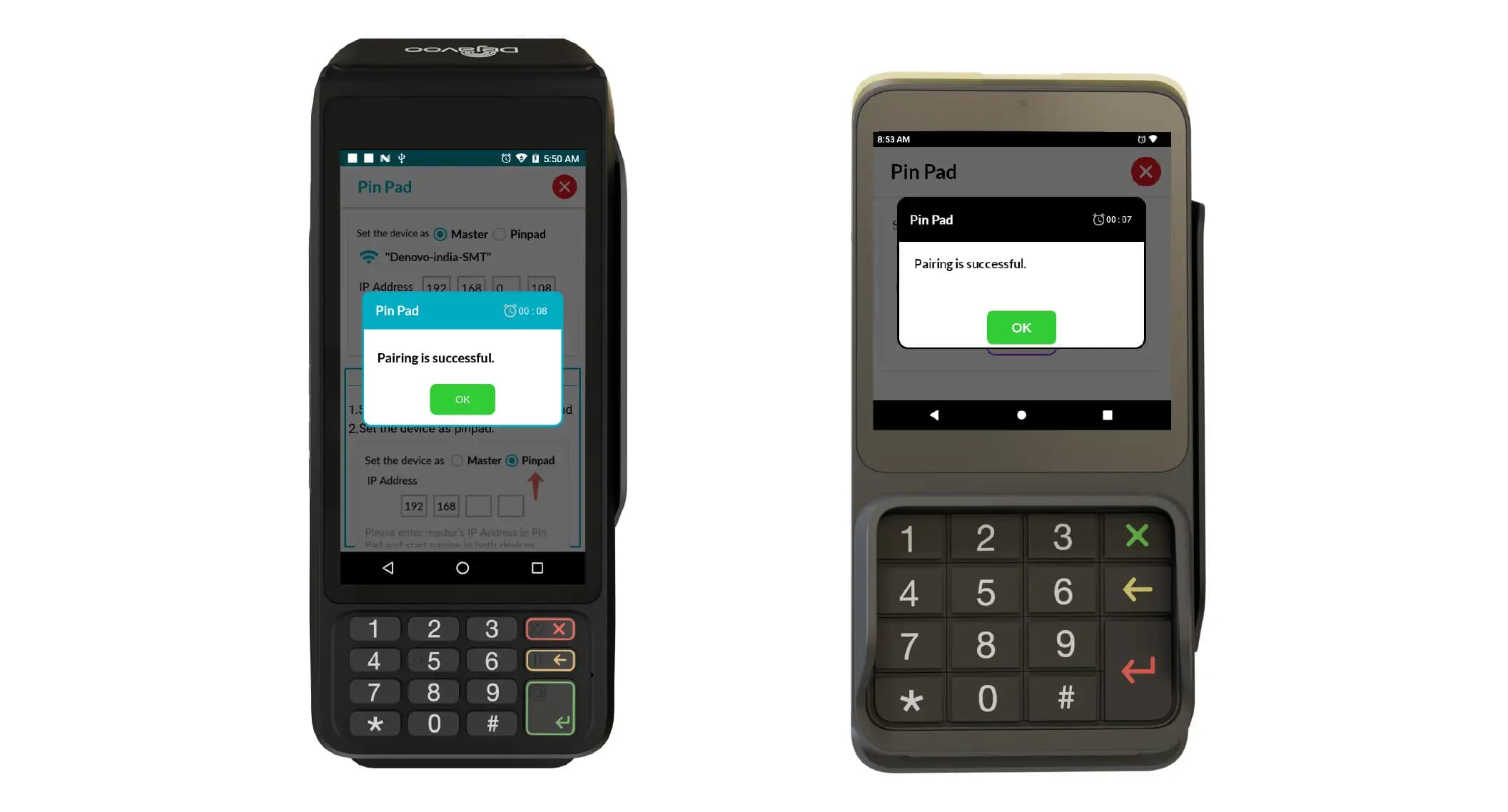

• Once the pairing is complete, click OK.

• The DvPay Lite app will then be reinitialized on both terminals.

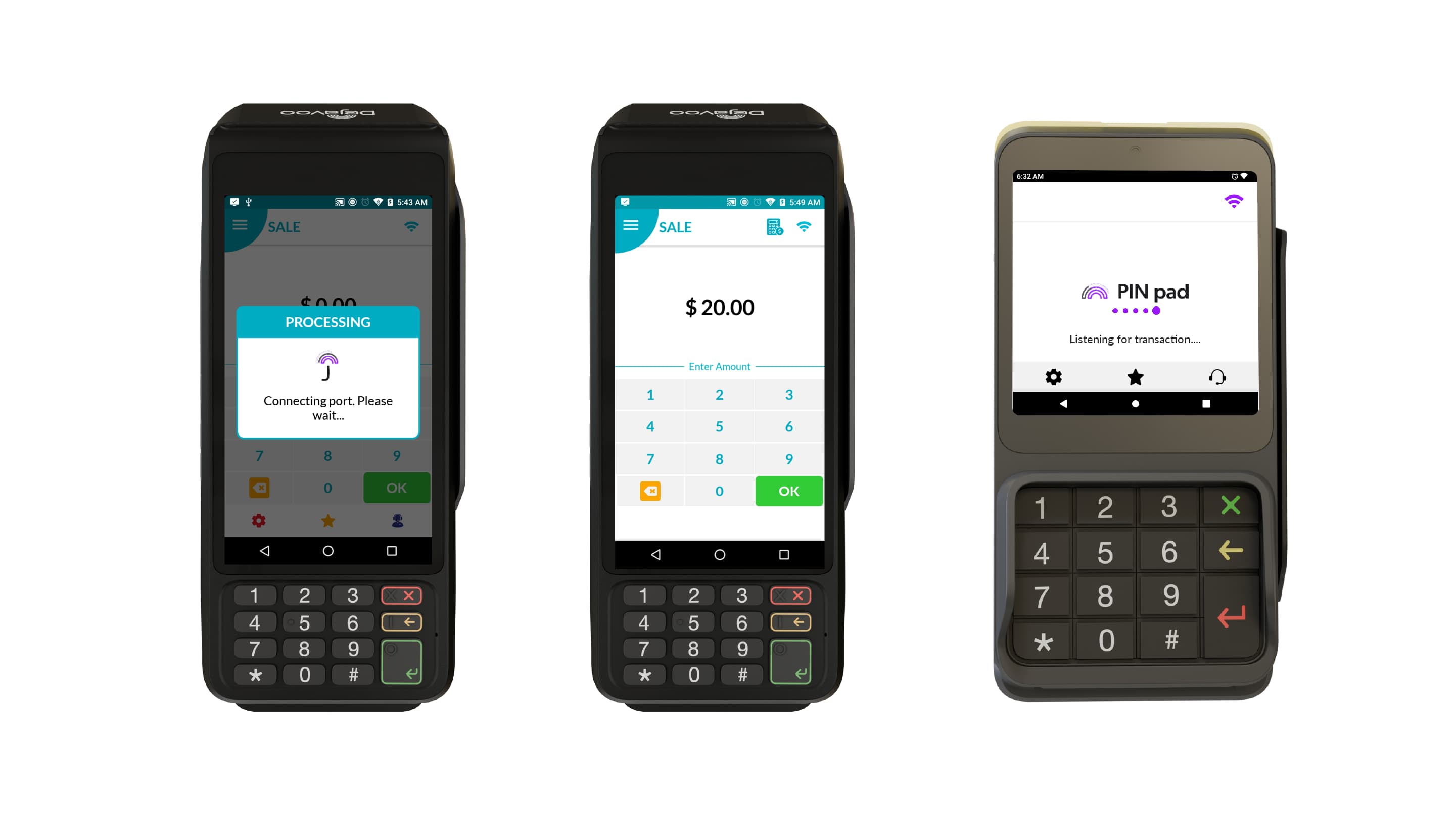

• Both terminals are now connected and ready for use.

How to Pair Through Wi-Fi

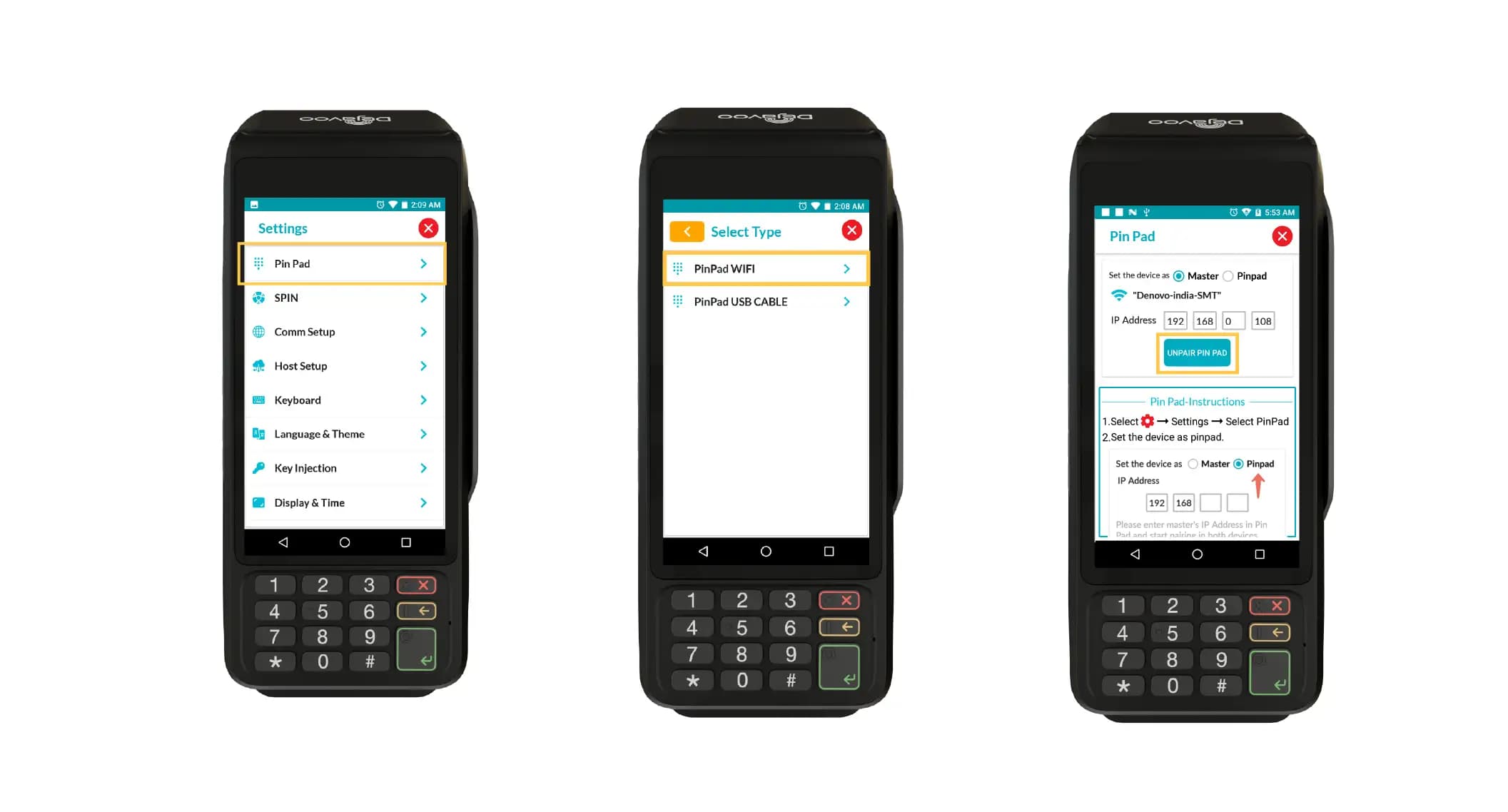

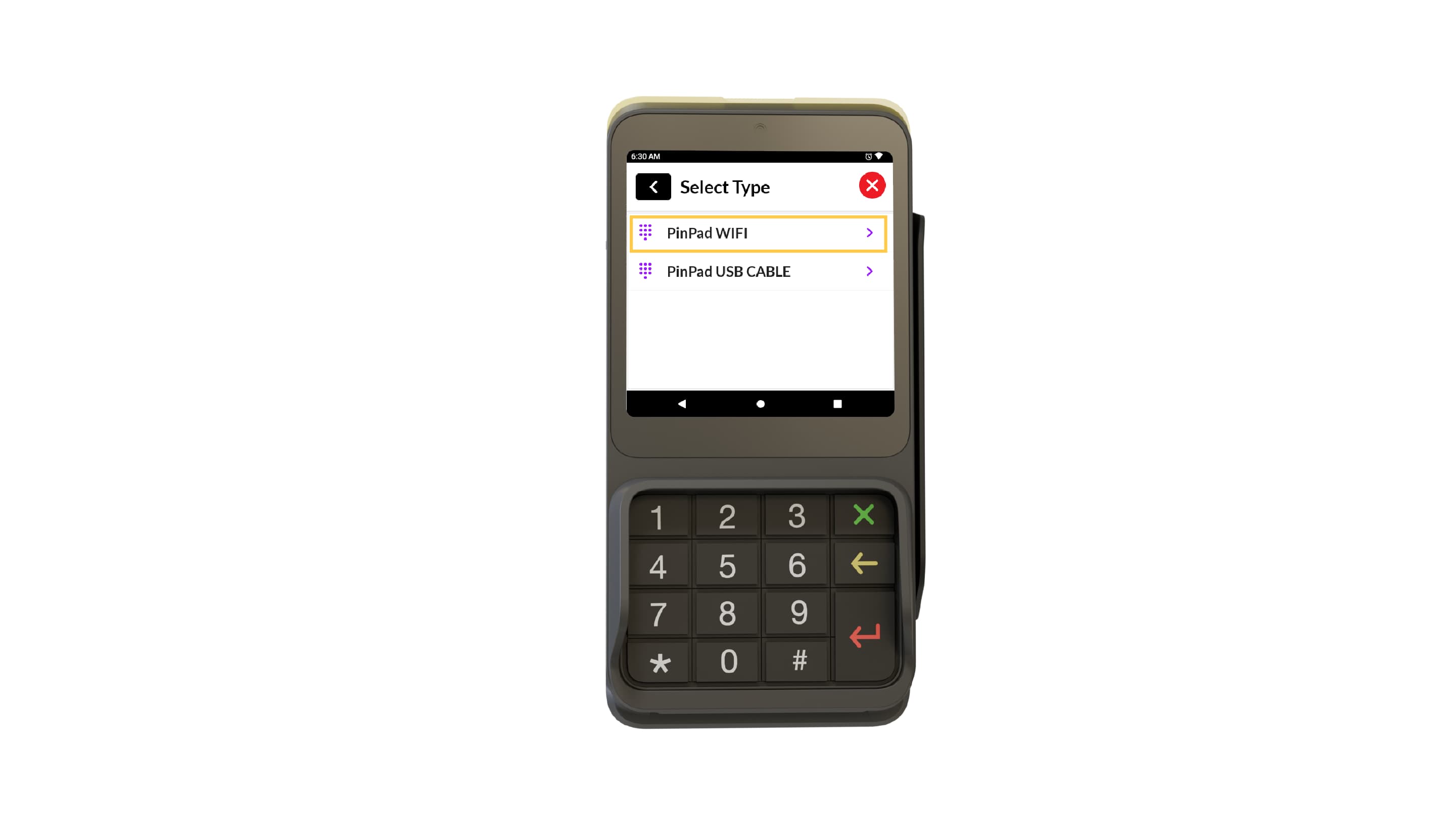

• On the P17 terminal, go to Settings and select PIN pad. Then choose PIN pad WiFi.
• On the P1 terminal, select the prompt “Pair Now.” If the prompt does not display, follow the same steps described for the P17 in the line directly above.

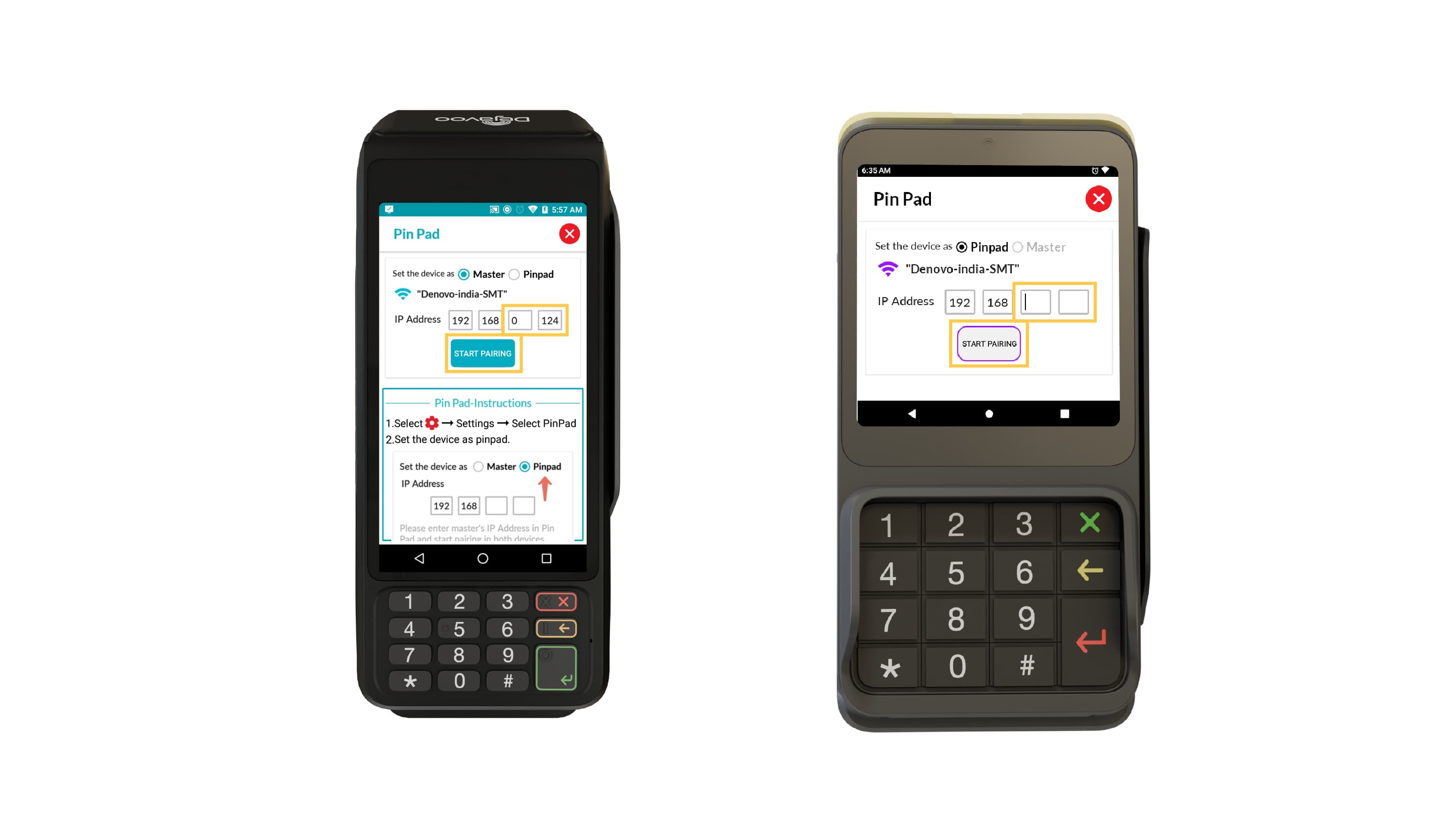

• Enter the IP address from the master terminal into the PIN pad.

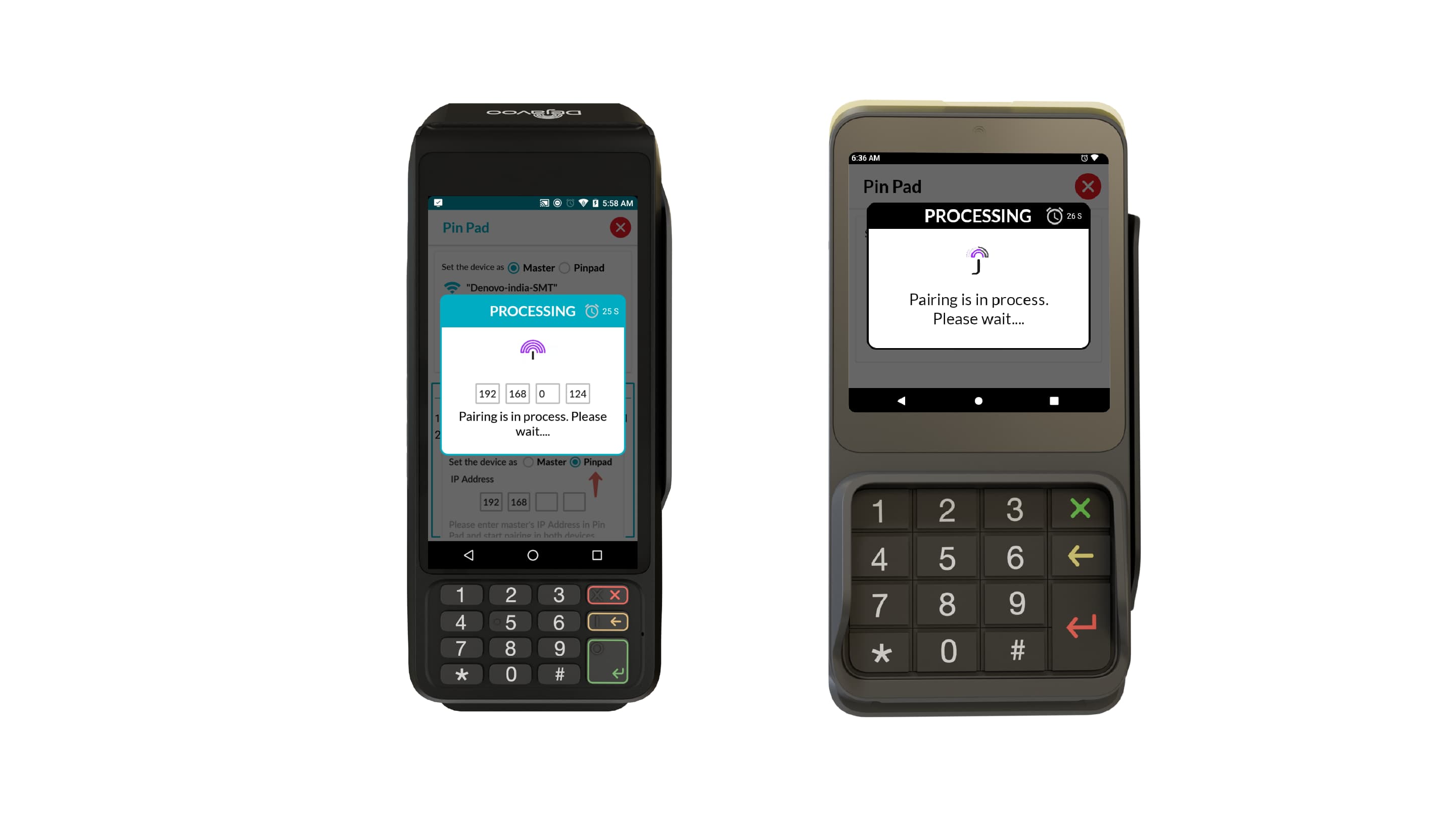

• Then, click Start Pairing on both terminals to initiate the pairing process.

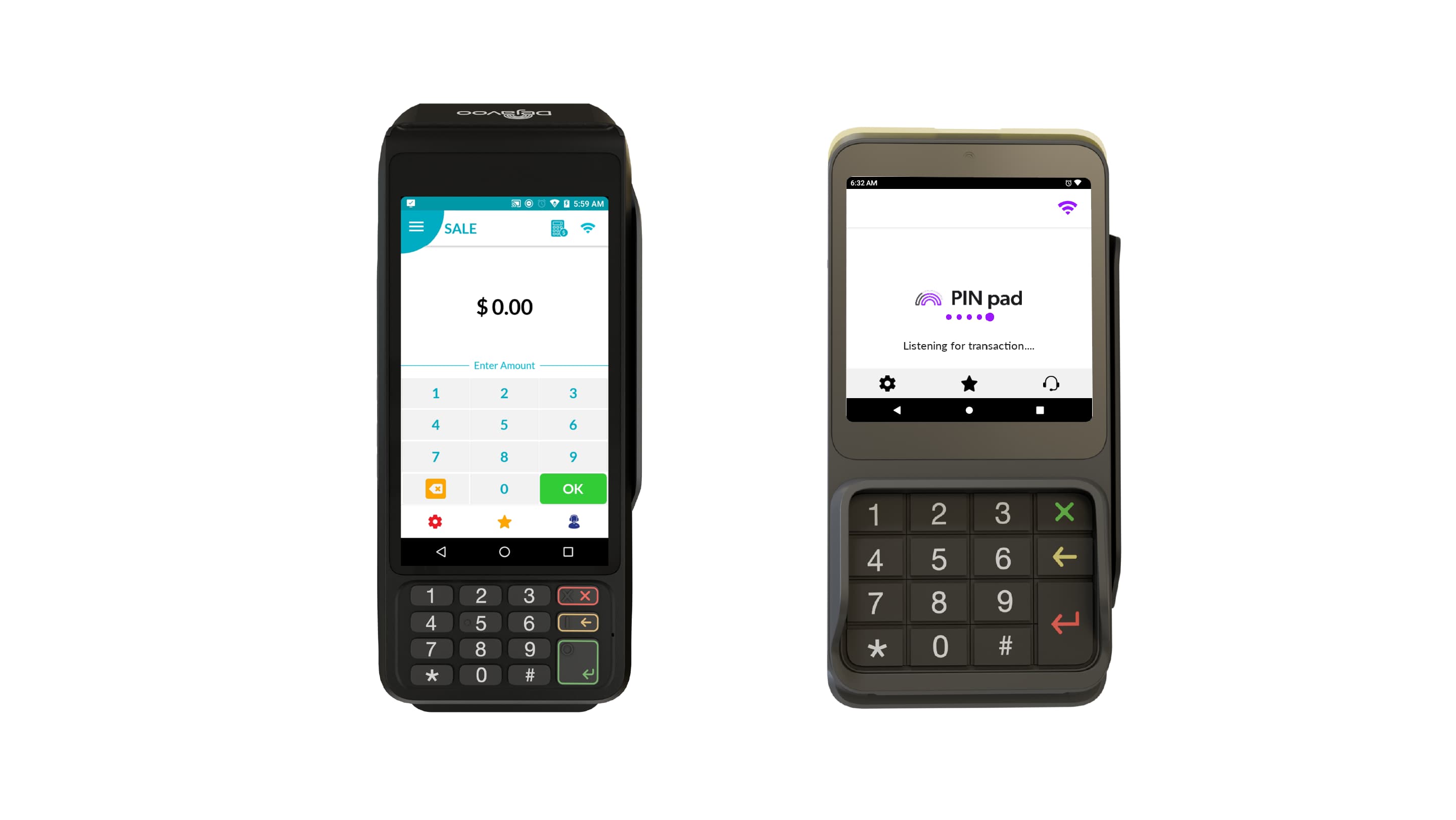

• The DvPay Lite app will then be reinitialized on both terminals.

• Both terminals are connected through Wi-Fi.

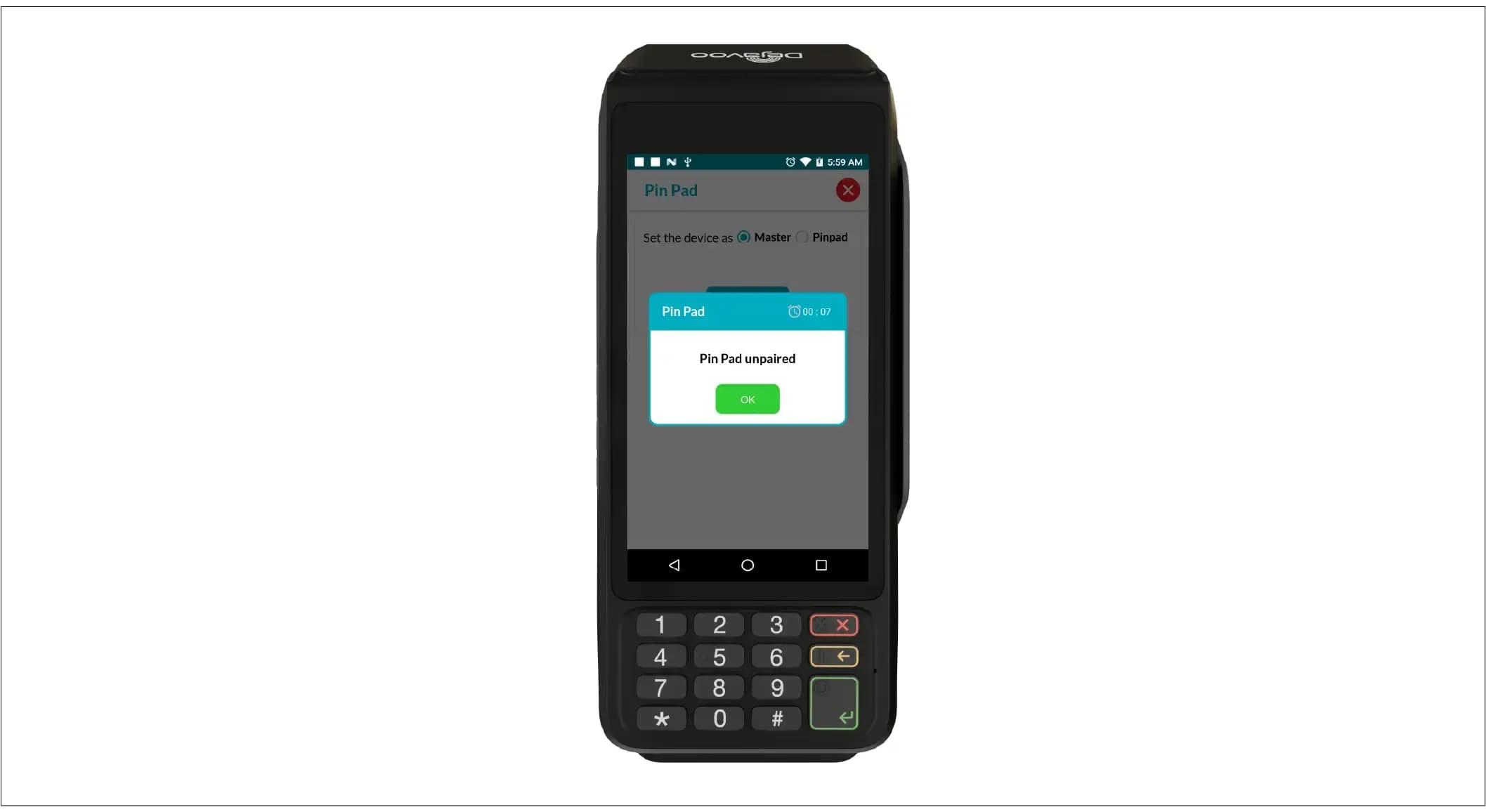

How to Unpair

• Go to Settings on the P1 terminal.

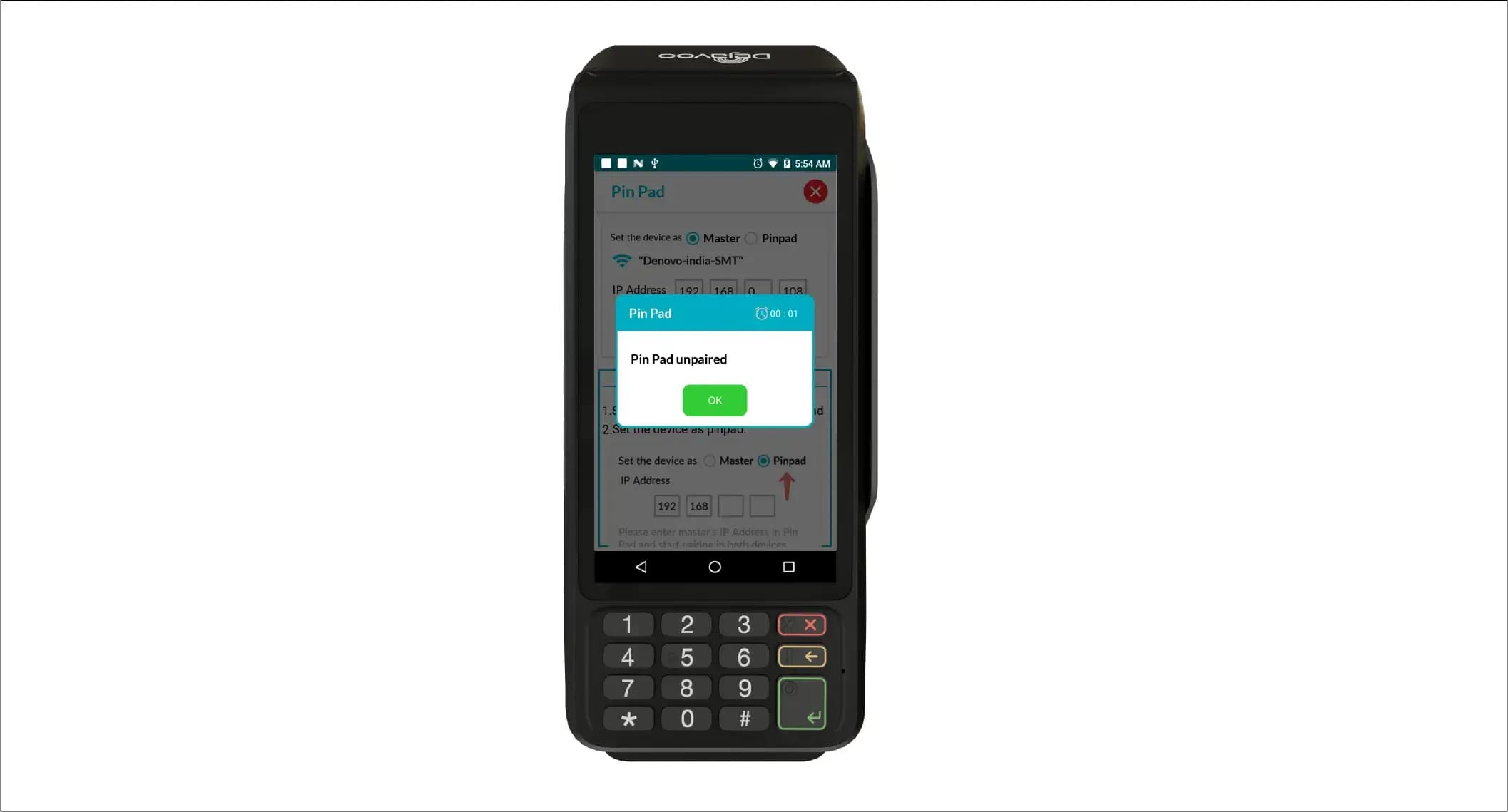

• For Wi-Fi: Select Pin Pad → PinPad WIFI → UNPAIR PIN PAD.

• For USB: Select Pin Pad → PinPad USB Cable → UNPAIR PIN PAD.
